Products >> Elevator >> Home Elevator

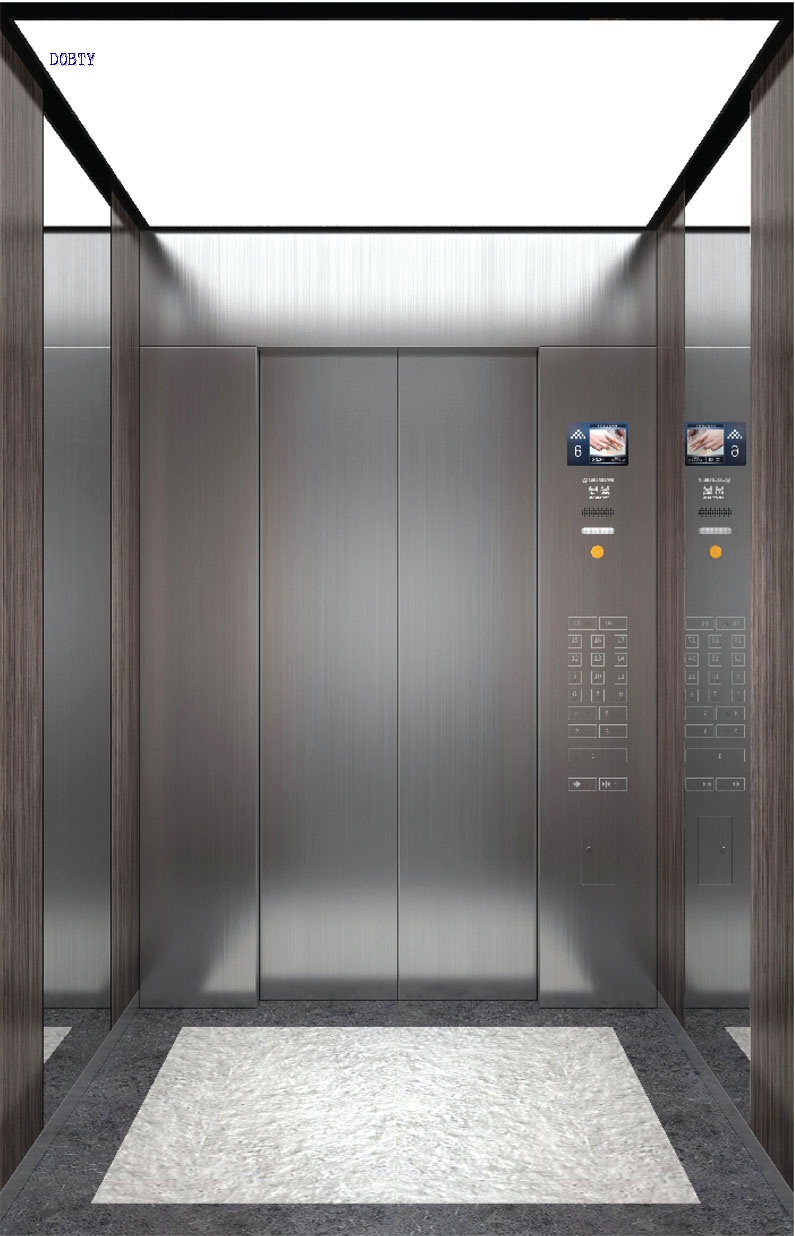

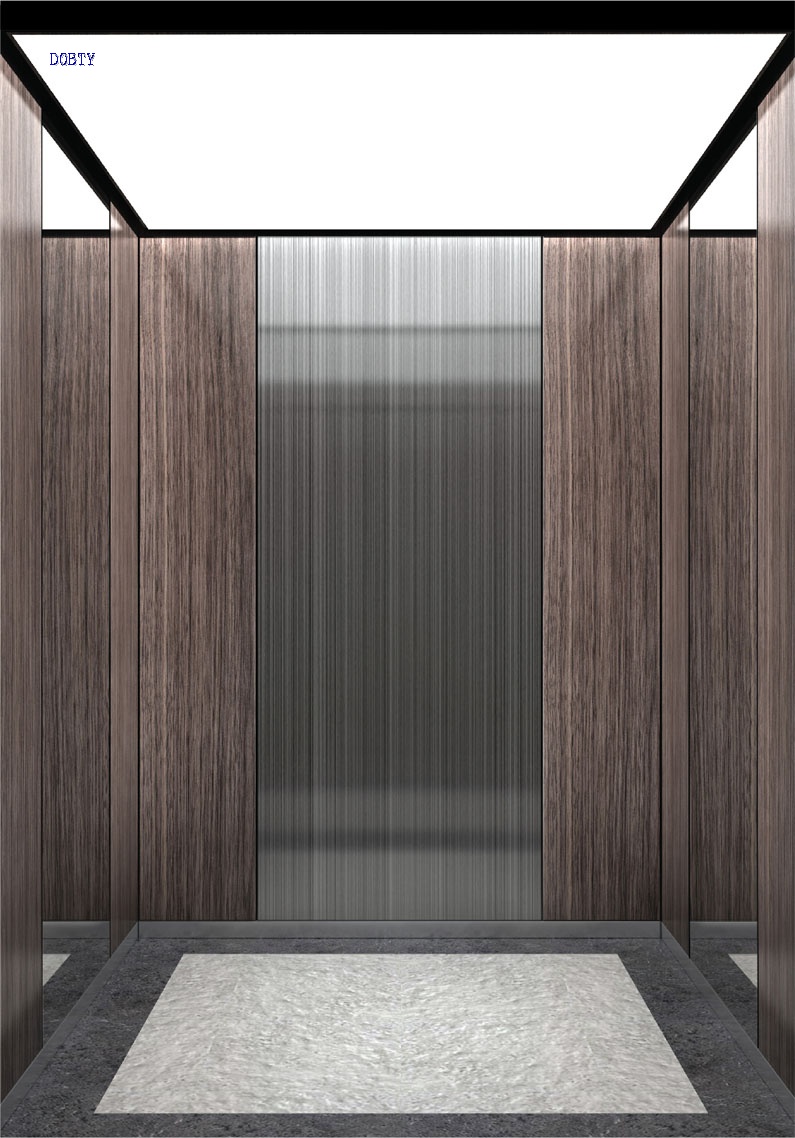

DB-CS052B Home Elevator
- Product No.：2020316201530
| Rated Load（KG） | Speed（M/S) | Cabin Size(mm) | Door Opening | Shaft Size | Pit Depth | OH |
| KG | M/S | Width✖Depth✖Height | Width✖ Height | Width✖ Depth | mm | mm |
| 250 | 0.4 | 850✖1200✖2200 | 700✖2000 | 1500✖1500 | ≥150 | ≥3700 |
| 320 | 0.4 | 950✖1300✖2200 | 750✖2000 | 1600✖1600 | ≥150 | ≥3700 |
| 400 | 0.4 | 1050✖1300✖2200 | 800✖2000 | 1700✖1600 | ≥150 | ≥3700 |
Shanghai DOBY Home Lift Counter Weight Side Location
and cabin Tope Sheave Design
| Rated Load（KG） | Speed（M/S) | Cabin size (mm) | Door Opening | Shaft Size | Pit Depth | OH |
| KG | M/S | Width✖Depth✖Height | Width✖Height | Width✖ Depth | mm | mm |
| 250 | 0.4 | 850✖1200✖2200 | 700✖2000 | 1600✖1500 | ≥400 | ≥2800 |
| 320 | 0.4 | 950✖1300✖2200 | 750✖2000 | 1700✖1600 | ≥400 | ≥2800 |
| 400 | 0.4 | 1050✖1300✖2200 | 800✖2000 | 1800✖1600 | ≥400 | ≥2800 |
Shanghai DOBY Elevator Manufacturing Shop：
Previous Product：DB-CL119 Home Elevator
Next Product：DB-CS051C Home Elevator
